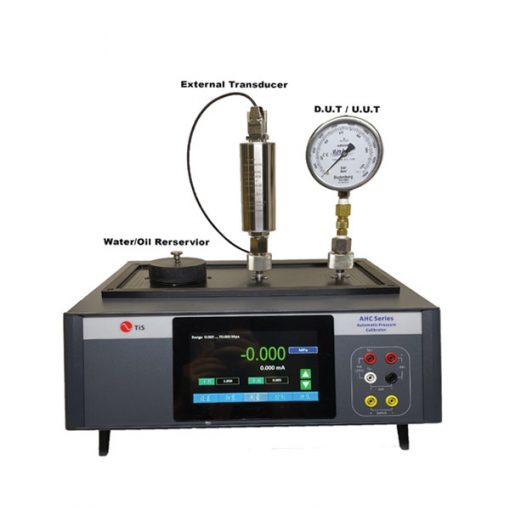

| Specifications of AHCP700-DK |
|
| Pressure Generation |
0 to 70 MPa (700bar / 10,000psi) |
| Pressure Accuracy |
Accuracy of 0.025%FS (Optional 0.01%FS) |
| Control Stability |
0.01%FS @ less than 15 seconds, water |
| Control Speed (0 to 100%) |
< 30 seconds |
| Control Volume |
50cc optimum (prefilled DUT) |
| Pressure Connection |
1/4″, 3/8″, 1/2″ BSP or NPT Female |
| Media Compatibility |
Water or Hydraulic Oil (Shell VG22) |
| Warm Up Time |
10 minutes |
| Display |
7.0″ TFT Capacitive Colour Touch Screen |
| Electrical Input |
0 to 20 mA with 24 Vdc Loop Power |
| Electrical Accuracy |
0.01%FS |
| Pressure Switch Test |
Non-Voltage Input |
| Communication Interface |
USB |
| Power Supply |
230 Vac or 115Vac, 50/60 Hz @ 2 Amp |
| Operating Temperature |
15 to 45 Deg C |
| Unit Size |
450L x 400D x 4153H mm |
| Weight |
15 kg |
